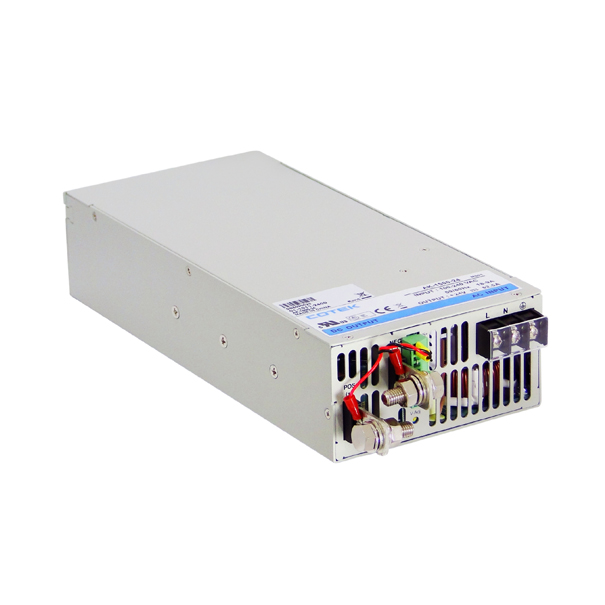

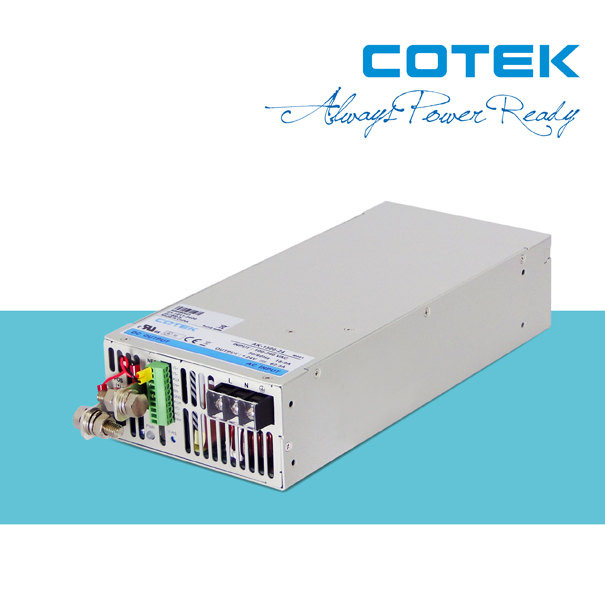

AK-1500 feature of product

model

AK-1500-12, AK-1500-15, AK-1500-24, AK-1500-27, AK-1500-48

Main Features

◎ Programmable output voltage and output current ◎ Parallel connection with current sharing ◎ Serial connection

Rated Power

1500W

DC Output Voltage

12V; 15V; 24V; 27V; 48V

DC Output Quantity

Single

Rated Current

125A; 100A; 62.5A; 55.5A; 31.3A

Ripple & Noise (Max.)

150mVp-p

Input Voltage Range

90~264VAC, 127~370VDC

Inrush Current (Typ.)

30A / 115VAC, 45A / 230VAC

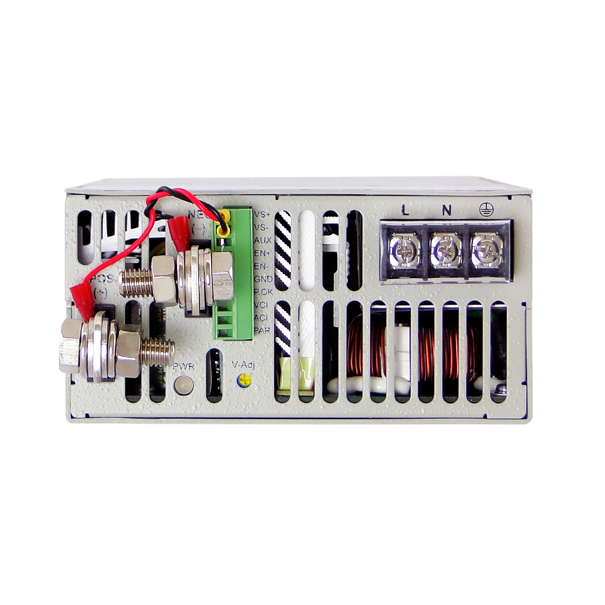

Function

Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim

Parallel Connection

Yes

Protection

Over Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure

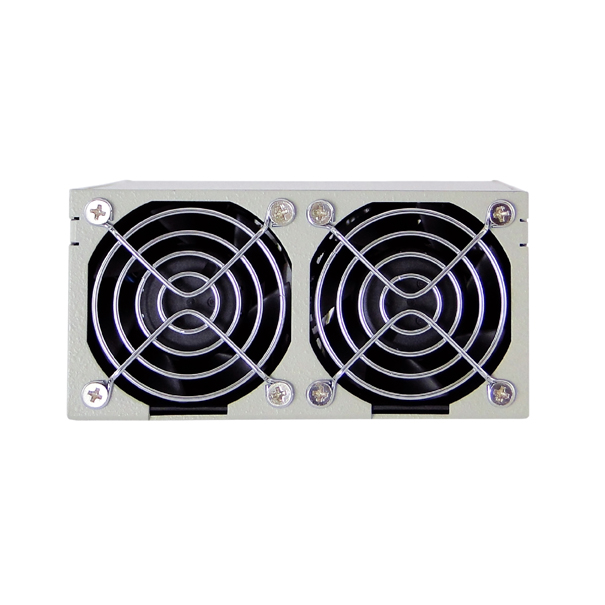

Cooling

Load and temperature control fan

Efficiency

87%; 88%; 89%; 89%; 90%

Operating Temperature

-25~60℃

Storage Temp. & Humidity

-40~85℃, 10~95%RH

Safety

TUV / UL / CE

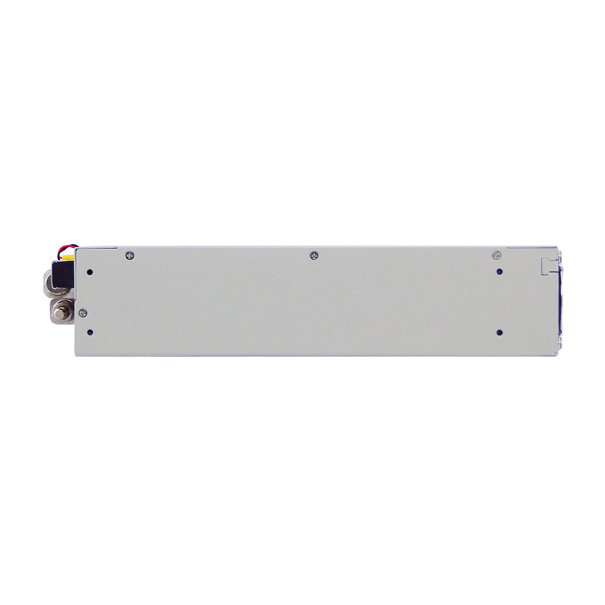

Dimension (WxHxD)

127x64x280 mm

Weight (Net)

3.2kg
