XIV100-120-120 10KVA(8KW)
0
Inquiries

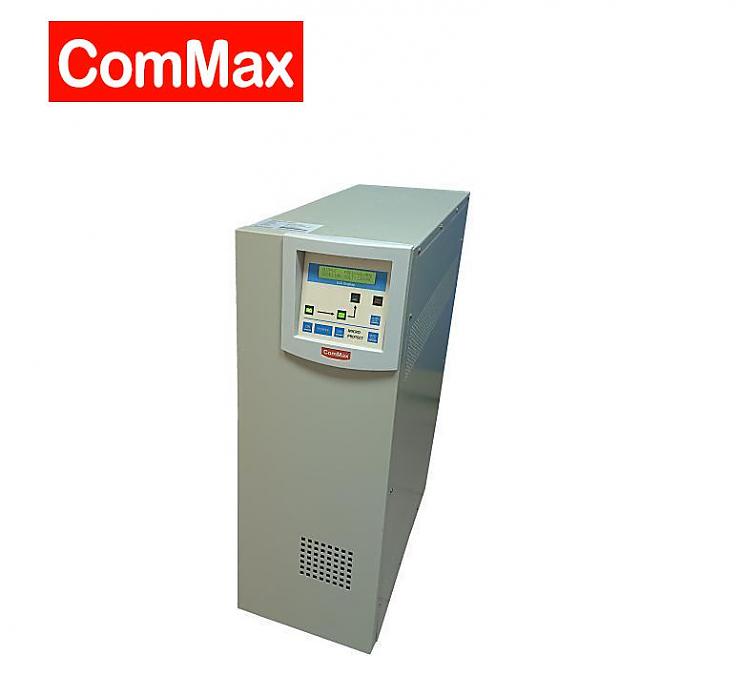

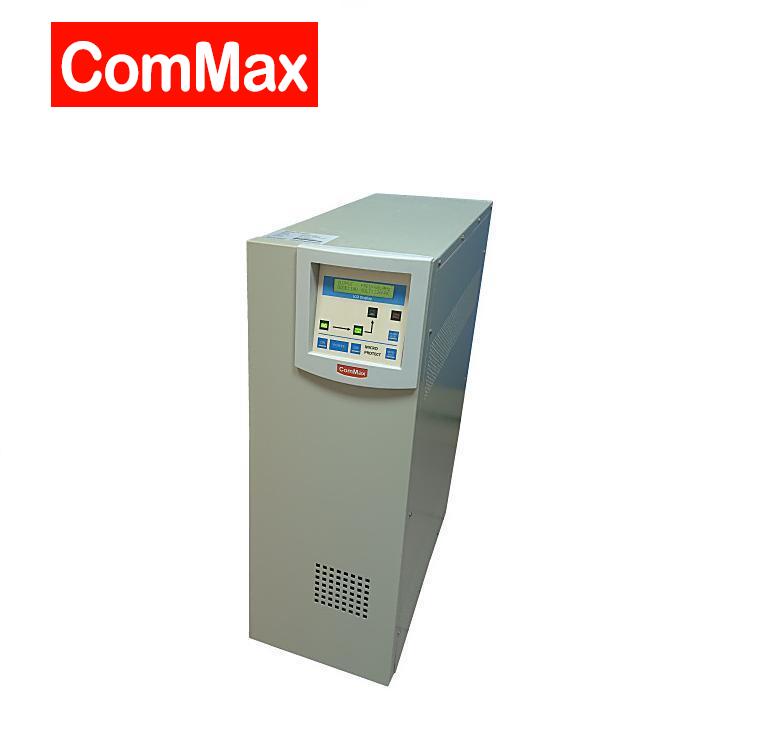

XIV100-120-120 10KVA(8KW)
ComMax
Join Inquiry
feature of product
|
Product specifications
|
Outline drawing
|
Download
XIV100-120-120 10KVA(8KW) feature of product
Pure sine wave output
Low Frequency design
DC operation mode (DC priority)
Overload protection
Short circuit protection
LCD display system information
Built-in Bypass Static Transfer Switch
model
XIV100-120-120
10KVA(8KW)
AC Output Voltage
1ph 2w , 120Vac ±15%
Output Waveform
Pure Sine Wave
DC Input Voltage
120VDC
DC Input Voltage Range
(95~145 VDC) / (105~160VDC)
THD Distortion
≦3% in full load
Efficiency
>85%
Operating Temperature
0~40℃
Dimension (WxHxD)
310Wx910Hx660D,mm
Weight (Net)
138KG
ComMax_XIV100-120Vdc-120Vac Power Inverter 10KVA(8KW) Datasheet
2020-03-04
Download
0.22MB
ComMax_XIV Inverter User Manual
2020-03-04
Download
1.20MB
