Max.Load Current
Single phase, 2 wires (L, N), AC 100V~320V,50/60Hz
EMP/EFT Suppressed Rate
4.5kV, 5x50ns (Elec.Fast Transient / burst)
Recording Surge types
Lightning Flash Surge ; power switching surge ; Switching Inrush Current ; Electric Magnetic Pulse ; Series Spark Surge
Surge Withstand Capability
6kV @ 1.2x50μs ; 3KA @ 8x20μs
LED Indication / LCD Digits
For Power ON/OFF and Counter Status / max. 6 digits counting
Compliance standards
ANSI C62.41, cat. C , ANSI C37.90.1
IEC 61643-1 , IEC 61000-4-4 , IEC 61000-4-5,

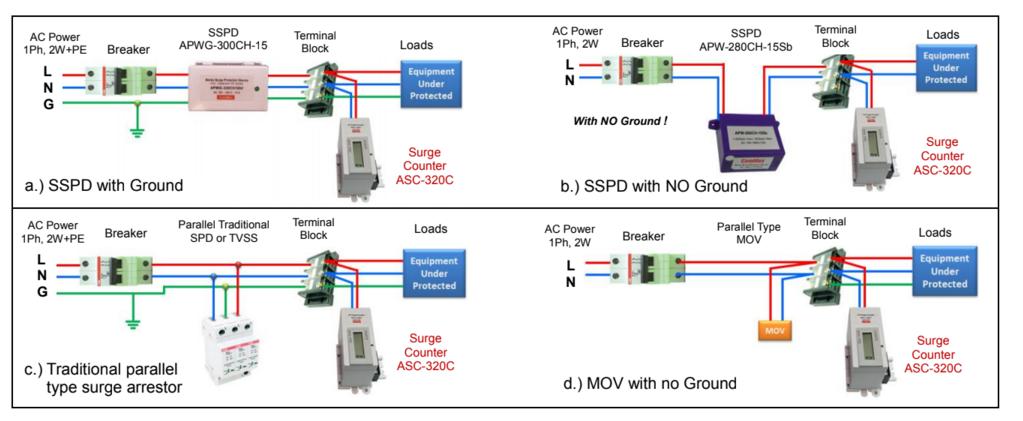

Connection Application
Parallel connect to Line (L) and Neutral (N) of AC power line
Dimension & Weight
83L x 37W x 58H, mm / 150 g
Case material / Wires
Industrial Plastic Case / 18 AWG wire, 20cm length
Operation temp. / Rel. Humidity
-20°C ~ 50°C / 35% ~ 95% RH (non condensation)
Installation
Both DIN rail and Screw fixing available (select one, according to the site situation)
